DIY eGPU experiences

[MikjoA]

For those who are looking for a WLAN card that can works on your WWAN usb port this might be interesting :

It looks like it is the perfect USB / mini-PCI-e WLAN A/B/G/N + bluetooth 3.0 card!

The AzureWave AW-NB037 IEEE 802.11 b/g/n MiniPCIE WI-FI with Bluetooth 3.0 +HS class II combo module is a highly integrated wireless local area WLAN solution to let users enjoy the digital content through the latest wireless technology without using the extra cables and cords. And it combines with Bluetooth 3.0+HS class II and provides a complete 2.4GHz Bluetooth system and is fully compliant to Bluetooth 3.0+HS and BT2.1 that supports EDR of 2Mbps and 3Mbps for data and audio communications. It enables a high performance, cost effective, low power, compact solution that easily fits onto two sides of the PCI Express and USB Combo Half Mini Card.

**You will need to connect two antennas in order to support WiFi and Bluetooth.**

Check it out here : E-ITX - AzureWave AW-NB037 802.11b/g/n WiFi plus Bluetooth Mini PCIe Card

[theneighborrkid]

That seems too low. Please monitor GPU clocks using GPU-Z ("Log to file"). See if GPU use higher clocks when running the benchmark.

Alright re-ran 3dmark06 and here is a log file as well:

Version: 1.2.0
SystemInfo Version: 3.21
11/6/11 9:25:20 PM
Id: 16201738
Score:
12362 3DMarks
Score Histogram of Similar Systems

PC Health Check BETA

Your Score is Low Compared to Similar Systems.
There may be a problem.
Tips for improving your score
Add to compare
NVIDIA GeForce GTX 560 video card 3DMark06 benchmark test score
Name

Description

Processor
Processor
Intel Core 2 Quad Processor Q6600
Processor clock1520 MHz
Physical / logical processors1 / 4
# of cores4
Graphics Card
Graphics Card
NVIDIA GeForce GTX 560
VendorAsustek Computer, Inc.
# of cards1
SLI / CrossFire Off
Memory1024 MB
Core clock0 MHz
Memory clock0 MHz
Driver name
Driver version8.17.12.8538
Driver statusNot FM Approved
General
Operating system32-bit Windows 7 (6.1.7600)
Motherboardhttp://www.abit.com.tw/ IP35-E (Intel P35+ICH9/R)
Memory4096 MB
Module 1
1024 MB Corsair DDR2 @ 400 MHz
Module 2
1024 MB Corsair DDR2 @ 400 MHz
Module 3
1024 MB Corsair DDR2 @ 400 MHz
Module 4
1024 MB Corsair DDR2 @ 400 MHz
Detailed scores
3DMark Score12362 3DMarks
SM2.0 Score4380
HDR/SM3.0 Score6429
CPU Score3336
GT1 - Return To Proxycon36.22 FPS
GT2 - Firefly Forest36.78 FPS
CPU1 - Red Valley1.11 FPS
CPU2 - Red Valley1.61 FPS
HDR1 - Canyon Flight79.39 FPS
HDR2 - Deep Freeze49.19 FPS
Settings
Default settings used Yes
Width1280
Height1024
Anti-AliasingNone
Texture FilteringOptimal
VS Profile3_0
PS Profile3_0

And attached Sensor Log file, I sadly won't have my desktop for long so please help out quickly if you can!

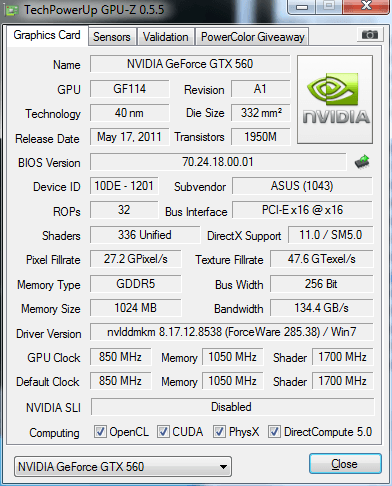

Also pic showing it is running at x16...

[MuF]

1.23. As i said in other responses, i was able to make another card work as EGPU, just not the GTX560. Pretty sure it is/was a power issue.

Could you please share more information?
What combinations BIOS version + amount of RAM + eGPU did you try with what result?
What are the 3dmark results?

[avlan]

DELL Latitude E4300 TO 36bit ALLOC (at last!)

I've managed, through hacking DSDT table, how to enable 36bit memory allocation my Latitude E4300

Device manager:

Spoiler :

Nando4 was right about, that Windows "uses the ACPI bios entry PNP0A03 or PNP0A08 to determines the root bridge address range with these systems having an entry that is limited only to 32-bit space." I compared both Inspiron 1440 and Latitude E4300 DSDT tables and noticed that both PNP0A03 entries are almost similar, except part on the left:

Inspiron (left)/Latitude (right) DSDT comparison:

Spoiler :

So I added this to Latitude's table, compiled with iasl and made sure, that Windows will load modified table on start (using Microsoft ASL Compiler; asl /loadtable dsdt.aml).

I've attached modified DSDT table (also removed some errors from it).

I'm almost sure, that this hack (not DSDT table ) applies to whole C2D Latitude Exx00 family.

[kizwan]

Alright re-ran 3dmark06 and here is a log file as well:
Also pic showing it is running at x16...

GPU-Z log show the graphic card did use the highest clock. I don't have any idea why the score is low except I think your GTX560 is faulty, considering it also failed to run Metro 2033 benchmark when connected to notebook.

[theneighborrkid]

GPU-Z log show the graphic card did use the highest clock. I think your GTX560 is faulty.

Is there any way to confirm this? If clocks seems okay, temps seem okay, and is running at x16 speed, what on earth could it be?

[kizwan]

Result from testing on desktop is not conclusive. Probably just a driver glitch. I have seen this kind of issue before. On your desktop, try uninstall the drivers (use Driver Sweeper) & reinstall again using the latest driver from Nvidia. Then run the benchmark again. Also run Furmark to test the graphic card.

On your notebook, PE4H cutoff power to eGPU for unknown reason. The "IDirect3D9::CreateDevice failed: Device lost (D3DERR_DEVICELOST)" error show at that point when error occured graphic card is disconnected. Your PE4H is an old version. Probably got bug or something.

[theneighborrkid]

Result from testing on desktop is not conclusive. Probably just a driver glitch. I have seen this kind of issue before. On your desktop, try uninstall the drivers (use Driver Sweeper) & reinstall again using the latest driver from Nvidia. Then run the benchmark again. Also run Furmark to test the graphic card.

On your notebook, PE4H cutoff power to eGPU for unknown reason. The "IDirect3D9::CreateDevice failed: Device lost (D3DERR_DEVICELOST)" error show at that point when error occured graphic card is disconnected. Your PE4H is an old version. Probably got bug or something.

I couldn't get vantage to run, but 3dmark06 ran with the same results. Vantage would hang on the last CPU test for some reason. Hmm, maybe I will wait for PE4H that uses 2.0 technology, or try to test the graphics card in a friends system.

[mabrown]

Hi Everyone,

I received all my eGPU parts last week. I have made a few attempts at getting it to fire up but so far without success.

My attempted setup:

Asus Eee 1015PEM Netbook
- iGPU: Intel Atom/3150 (Pine View)
- Chipset: NM10 (Pine Trail)
- Win 7 Starter (to be changed for Home Premium later)

eGPU: Leadtek GT430, 2GB (connected via VGA out to LCD TV as external monitor)

From HIT: PM3N (plugged in where wifi normally goes) & PE4H

Problem:

My main problem is 'Error 43'. My card is correctly recognised but Device Manager tells me it has stopped the eGPU because it "has problems".

The PE4H is showing three green LED's. The PM3N is showing one green and one orange LED.

I have tried an alternative video card (older Geforce) with the same result.

I have tried 270.61 32-bit drivers. I have also tried 258.96 32-bit drivers.

I have made some attempts at using eGPU Setup but am at a bit of a loss as to the proper procedure to use with 'Error 43'.

At this stage I only want to see output of my eGPU via external monitor as I realise that internal LCD only setup will require Optimus and therefore Win 7 Home Premium or better.

Any help you guys can give would be very much appreciated.

Cheers,

Mark

[frmrpreztaft]

Could you please share more information?
What combinations BIOS version + amount of RAM + eGPU did you try with what result?
What are the 3dmark results?

I'll re-visit this tomorrow and share results.
